SD SW Hydraulic Pneumatic Air Cylinder Axial Mounting Single End Rod Thin Type Bore Size 80mm

  • 1
  • 2
  • 3

Brand Name : FLUIDAC or OEM

Model Number : RTB-SD 32*20 N

Place of Origin : Ningbo China(Mainland)

MOQ : 5PCS

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal

Supply Ability : 5000PCS per Month

Delivery Time : Within 20 days after receiving payment or deposit

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Material : Carbon steel

Mounting type : SD-Single end rod / SW- Doubele end rod

Range of Pressure : 0.5~14MPa/cm2

Range of temperature : -10~+60℃

Working medium : Filtered oil

Bore size : φ20~φ80

Contact Now

RTB SD SW Hydraulic Axial Mounting Single End Rod Thin Type Cylinder Bore Size φ20~φ80mm Pmax 140kg/Cm2

Hydraulic Thin Type Cylinder Bore Size Φ20~Φ80mm, Pmax 140kg/ cm2 e.g.RTB-SD 32*20 N

Details:

  • Made of carbon steel,Smoothness and long service
  • Lightweight design,convenient installation,low cost
  • Standard type, provide multiple modes of using
  • High quality sealing ring,abrasive resistance and air leakage

Ordering Code:

RTB SD 32 × 20 N
RTB Series Mounting Type:
SD: Single end rod type
SW: Double end rod type		 Bore Size:
φ20,φ25,φ32,φ40,φ50,φ63,φ80		 Standard Stroke:
10,20,30,40,50		 Rod End Type:
N:Female thread N
W: Male thread W

Specification:

Mounting type SD Single end rod type
SW Double end rod type
Range of pressure(Mpa/cm2 ) 0.5~14MPa/cm2
The range of speed 8~100mm/sec
The range of temperature -10~+60℃
Working Fluid Filtered oil
Acting type Double acting
Material of cylinder Carbon steel

Dimensions:

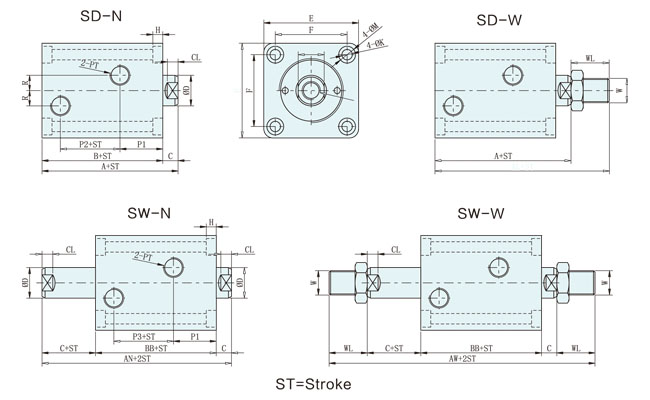

SD SW Hydraulic Pneumatic Air Cylinder Axial Mounting Single End Rod Thin Type Bore Size 80mm

Bore Size A AL AN AW B BB C CL
φ20 51 71 – – 43 – 8 6
φ25 53 75 – – 45 – 8 6
φ32 64 89 89 139 54 69 10 7
φ40 65 95 90 150 55 70 10 7
φ50 71 106 97 167 60 75 11 8
φ63 80 120 108 188 67 82 13 10
φ80 95 140 127 217 78 93 17 14

Bore Size D SW E F H K M N
φ20 12 10 42 30 5.5 5.6 9 M18*1.25*12D
φ25 14 12 48 36 5.5 5.6 9 M10*1.5*15D
φ32 20 17 62 47 6.5 6.8 11 M12*1.75*15D
φ40 25 22 70 52 9 9 14 M16*2.0*20D
φ50 30 27 80 58 11 11 18 M20*2.5*25D
φ63 35 32 94 69 13 13 20 M27*3.0*35D
φ80 45 41 114 86 15 15 22 M30*3.5*35D

Bore Size W WL P1 P2 P3 R PT
φ20 M10*1.25 20 22.5 11 – 5 1/8
φ25 M12*1.25 22 23 12 – 5 1/8
φ32 M16*1.5 25 28 14 13 10 1/4
φ40 M22*1.5 30 28 15 14 10 1/4
φ50 M26*1.5 35 29.5 18 16 10 1/4
φ63 M30*1.5 40 31 20 20 10 3/8
φ80 M36*1.5 45 33 27 27 15 3/8



Product Tags:

SD SW Hydraulic Pneumatic Air Cylinder



Bore Size 80mm Pneumatic Air Cylinder



Single End Rod Pneumatic Air Cylinder


Quality SD SW Hydraulic Pneumatic Air Cylinder Axial Mounting Single End Rod Thin Type Bore Size 80mm wholesale

SD SW Hydraulic Pneumatic Air Cylinder Axial Mounting Single End Rod Thin Type Bore Size 80mm Images
