Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm

Brand Name : FLUIDAC or OEM

Model Number : RTB-LAM 32*20 N

Place of Origin : Ningbo China(Mainland)

MOQ : 5PCS

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal

Supply Ability : 5000PCS per Month

Delivery Time : Within 20 days after receiving payment or deposit

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Material : Carbon steel

Mounting type : LA-Single end rod / LW- Doubele end rod

Range of Pressure : 0.5~14MPa/cm2

Range of temperature : -10~+60℃

Working medium : Filtered oil

Bore size : φ32~φ63

Contact Now

Hydraulic Manifold Thin Type Cylinder Side End Rod RTB-LAM 32*20 N

Hydraulic Manifold Type Cylinder Bore Size Φ32~Φ63mm, Pmax 140kg/ cm2 e.g.RTB-LAM 32*20 N

Details:

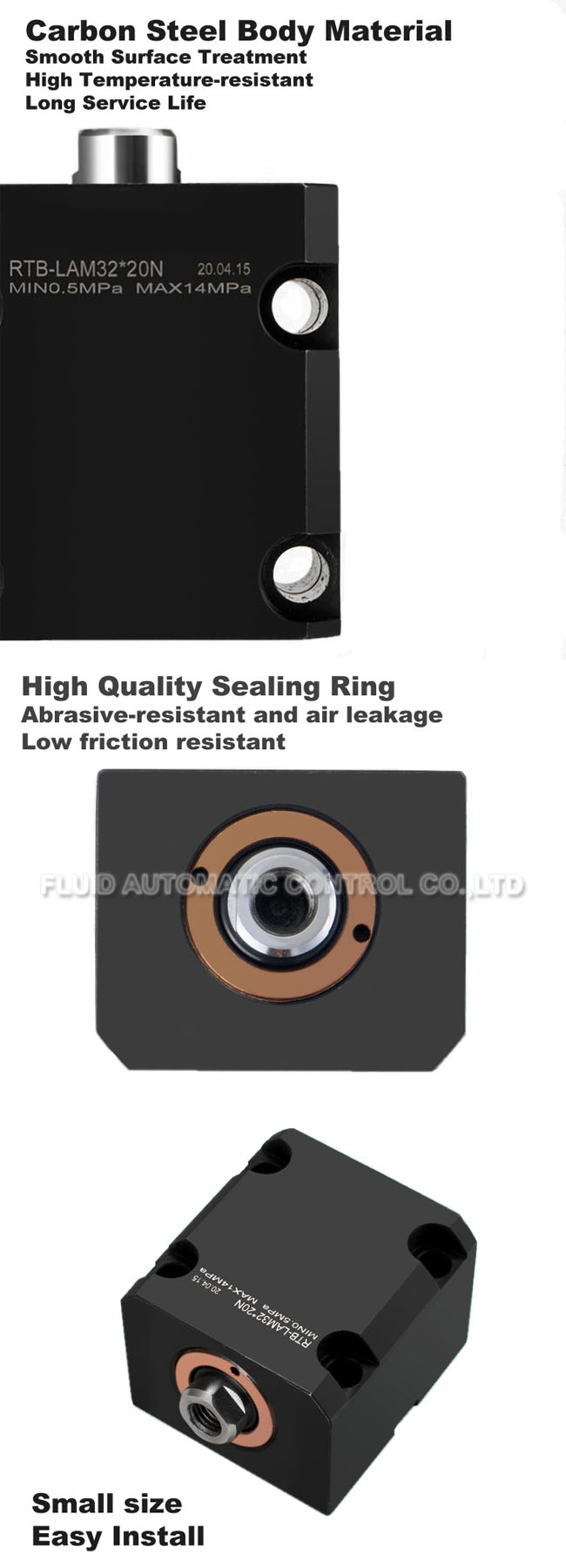

  • Made of carbon steel,Smoothness and long service
  • Lightweight design,convenient installation,low cost
  • Standard type, provide multiple modes of using
  • High quality sealing ring,abrasive resistance and air leakage
  • Low friction resistance

How to order:

RTB LAM 32 × 20 N
RTB Series Mounting Type:
LA: Single end rod type
LW: Double end rod type		 Bore Size:
φ32,φ40,φ50,φ63		 Standard Stroke:
10,20,30,40,50		 Rod End Type:
N:Female thread N
W: Male thread W

Specification:

Mounting type LA Single end rod
LW Double end rod
Range of pressure(Mpa/cm2 ) 0.5~14MPa/cm2
Bore size φ32,φ40,φ50,φ63
Standard stroke 10,20,30,40,50
The range of speed 8~100mm/sec
The range of temperature -10~+60℃
Working medium Filtered oil
Acting type Double acting
Material Carbon steel

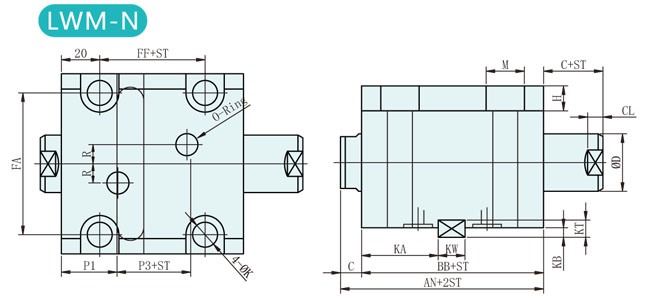

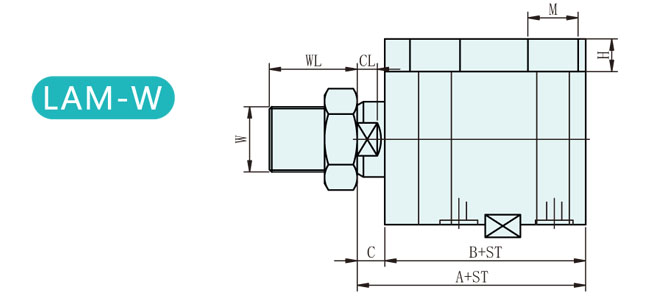

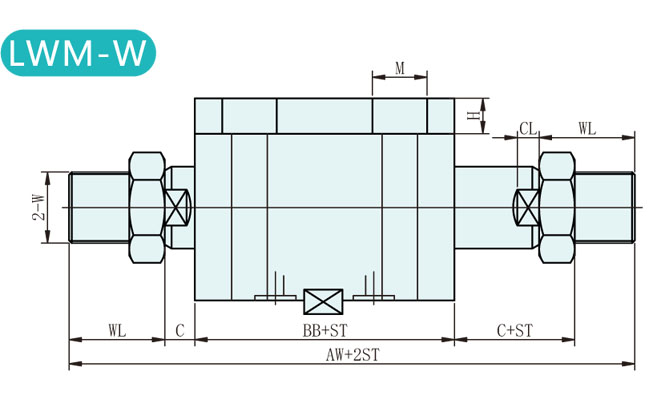

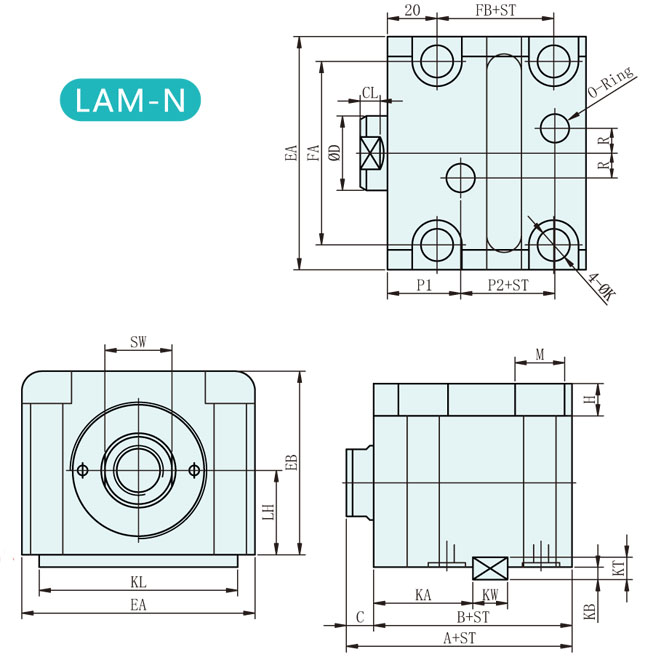

Dimensions:

Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm

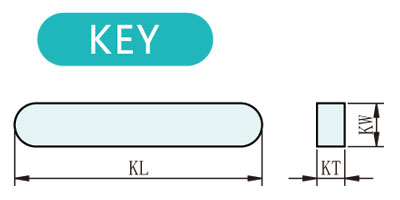

Bore Size KW KT KL KA KB
φ32 12 8 63 28 4.5
φ40 12 8 70 28 4.5
φ50 14 9 80 29 5
φ63 16 10 100 31 5.5

Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm

Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm

Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm

Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm

Bore Size A AL AN AW B BB C CL D SW EA EB LH FA FB FF H K M N W WL P1 P2 P3 R O
φ32 64 89 89 139 54 69 10 7 20 17 70 56 25 56 24 32 9 9 14 M12*1.75*15D M16*1.5 25 28 14 13 10 P9
φ40 65 95 90 150 55 70 10 7 25 22 80 64 29 62 23 32 11 11 18 M16*2.0*20D M22*1.5 30 28 15 14 10 P9
φ50 71 106 97 167 60 75 11 8 30 27 94 74 34 74 27 35 13 13 20 M20*2.5*25D M26*1.5 35 29.5 18 16 10 P11
φ63 80 120 108 188 67 82 13 10 35 32 114 89 42 90 32 42 15 15 22 M27*3.0*35D M30*1.5 40 31 20 20 10 P11

Side Manifold Type Hydraulic Cylinder Single End Rod LAM LWM Bore 32mm
