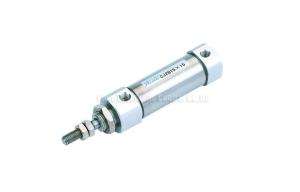

CJ2 Series Stainless Steel Mini Air Cylinder ,Single Acting Spring Return Pneumatic Cyinder
SMC type stainless steel super mini CJ2 double acting single acting Pneumatic air cylinder Bore size 6mm-16mm e.g. CJ2B6-15-A with magnet and air buffer
Quick Detail:
* SMC interchange stainless steel super mini pneumatic air cylinder
* With magnet, rubber cushion keep from impact,air buffer for option
* Long service life,lower noise
* Stainless steel barrel for anti-corresion and sanitary application
* Piston rod #45(ASTM-1045) steel chrome-plated
* Stainless steel piston rod is available
* With self-lubricating bearing,lubrication free
* Bore size 6mm,10mm,16mm
* Cylinder kits and accessories available
Specifications:
| ORDERING CODE |
| CJ2 | B | 6 | 15 | A |
| CJ2: Standard without magnet | B: Basic type | Bore size | Stroke | A:Air buffer |
| L:Foot bracket | 6:6mm |
| CDJ2:With Magnet | F:Flange | 10:10mm | Blank:Rubber buffer |
| D:Double earring | 16:16mm |
| SPECIFICATION |
| Bore size(mm) | 6 | 10 | 16 |
| working Medium | Filtered compressed air |
| Motion Pattern | Double action/Single acting |
| Pressure Endurance | 1.05MPa |
| Operating pressure range | 0.15~0.7MPa Double acting,0.25~0.7MPa Single action |
| Ambient Temperature | -10~70ºC |
| Buffer cushioning | Rubber Buffer | Rubber buffer or Air buffer for option |
| Operating Speed | 50~750mm/s |
| Port size | M5X0.8 | M5X0.8 | M5X0.8 |

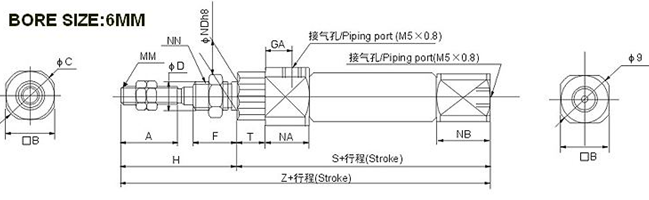

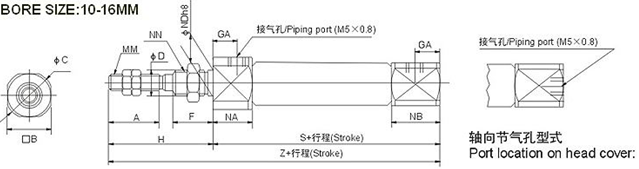

| Bore(mm) | A | B | C | D | F | GA | GB | H | MM | NA | NB | NDh8 | NN | S | T | Z | |
| 6 | 15 | 12 | 14 | 3 | 8 | 14.5 | - | 28 | M3×0.5 | 16 | 7 | 6 | M6×1.0 | 49 | 3 | 77 |
| 10 | 15 | 12 | 14 | 4 | 8 | 8 | 5 | 28 | M4×0.7 | 12.5 | 9.5 | 8 | M8×1.0 | 46 | - | 74 |
| 16 | 15 | 18 | 20 | 5 | 8 | 8 | 5 | 28 | M5×0.8 | 12.5 | 9.5 | 10 | M10×1.0 | 47 | - | 75 |
| |

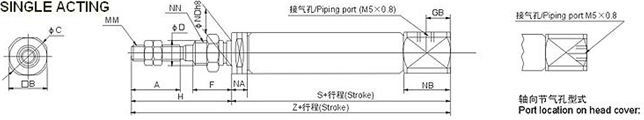

| Bore | A | B | C | D | F | GB | H | MM | NA | NB | NB b8 | * |
| (mm) | 5~ | 16~ | 31~ | 4 6 ~ | 61~ | 76~ | 101~ | 126~ |
| | 15 | 30 | 45 | 60 | 75 | 100 | 125 | 150 |
| 6 | 15 | 8 | 19 | 3 | 8 | - | 28 | M3×0.5 | 3 | 7 | 6 0 | 34.5 (39.5) | 43.5 (48.5) | 47.5 (52.5) | 61.5 (66.5) | - | - | - | - |
| 10 | 15 | 12 | 14 | 4 | 8 | 5 | 28 | M4×0.7 | 5.5 | 9.5 | 8 0 | 45.5 | 53 | 65 | 77 | - | - | - | - |
| 16 | 15 | 18 | 20 | 5 | 8 | 5 | 28 | M5×0.8 | 5.5 | 9.5 | 10 0 | 45.5 | 54 | 66 | 78 | 84 | 108 | 126 | 138 |
| |
| Bore | * | |
| (mm) | 5~ | 16~ | 31~ | 4 6 ~ | 61~ | 76~ | 101~ | 126~ |
| | 15 | 30 | 45 | 60 | 75 | 100 | 125 | 150 |
| 6 | 62.5 (67.5) | 71.5 (76.5) | 75.5 (80.5) | 89.5 (94.5) | - | - | - | - |
| 10 | 73.5 | 81 | 93 | 105 | - | - | - | - |
| 16 | 73.5 | 82 | 94 | 106 | 112 | 136 | 154 | 166 |
Pneumatic cylinder,Air cylinder, Stainless steel mini air cylinder
