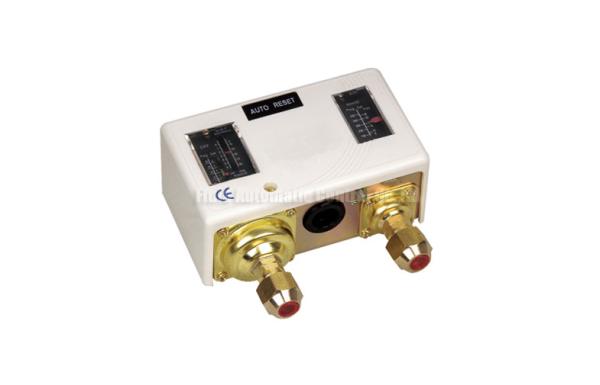

PD Series Dual pressure switch with high low double pressure, low pressure -0.5~6bar,high pressure8~30bar,auto reset type,manual reset type body material brass e.g PD830

Quick Detail:

* PD series dual pressure controller Saginomiya interchangeable

* body material brass

* housing material engineering plastic

* bellow material brass or stainless steel for option

* internation mounting bracket for flexible installing of different occasions

* pressure setting can be adjustable for specific application

* micro-switch enables reliability of switch function

* high precision window scale

* high pressure-resistance up to 35Bar

* stable design,long service life cycle

Applications:

PS Series Double pressure switch function can be one single high pressure type and one single low pressure type combine together,it mounted on the high pressure and low pressure side of air compressor to control the inlet and outlet pressure,when the pressure of system at the set ON pressure,system starts to work,when pressure at OFF pressure,system shut off for a protection

This products used widely in the automation system,Fluoride refrigerant system,and can be working in other system of liquids without corrosion.

Specifications:

1,Working medium: Air,Fluoride refrigerants,Non-corrosion liquids

2,Body material:Brass

3,Bellows material:Brass

4,Housing material:Plastic engineering

5,Maxiumum working pressure:16.5Bar(Low pressure side) and 5Bar(High pressure side)

6,Switch model:SPDT

7,Working temperature:-45℃~120℃
